For this assembly, you will need a Phillips head screw driver.

Grab the design files here: http://www.thingiverse.com/thing:118037

Grab a kit here:http://builttospecstore.storenvy.com/products/1910120-pcduino-enclosure[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/1″][vc_tour][vc_tab title=”Step 1: Check and prep all of the parts” tab_id=”1389061199-1-10″][vc_column_text]Lay out the pieces as shown in the photo and check that you have all of the parts.

After you have made sure that you have all of the parts, remove the masking material from both sides of the acrylic:

[/vc_column_text][/vc_tab][vc_tab title=”Step 2: Insert the brass inserts” tab_id=”1389061199-2-64″][vc_column_text]Take the plate that looks like this:

and push the brass inserts into the holes from the bottom as shown in the image below:

[/vc_column_text][/vc_tab][vc_tab title=”Step 3: Add the next layer.” tab_id=”1389061335880-2-1″][vc_column_text]Take the two half pieces and place them as shown:

[/vc_column_text][/vc_tab][vc_tab title=”Step 4: Add the PCB” tab_id=”1389061336896-3-3″][vc_column_text]Take the pcDuino and place it as shown:

[/vc_column_text][/vc_tab][vc_tab title=”Step 5: Add PCB edge pieces” tab_id=”1389061337630-4-6″][vc_column_text]Take the thin acrylic pieces and place them around the edge of the PCB as shown below:

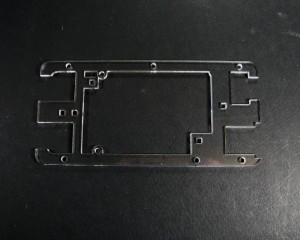

[/vc_column_text][/vc_tab][vc_tab title=”Step 6: Add the next layer (starting to get a little repetitive, ain’t it?)” tab_id=”1389061338490-5-3″][vc_column_text]It looks like this:

It goes on like this:

[/vc_column_text][/vc_tab][vc_tab title=”Step 7: Add the next piece” tab_id=”1389061443728-6-6″][vc_column_text]It looks like this:

[/vc_column_text][/vc_tab][vc_tab title=”Step 8: Add the next layer and the buttons” tab_id=”1389061469228-7-10″][vc_column_text]It looks like this:

Goes on like this:

And the buttons (these things):

go in the holes like this:

[/vc_column_text][/vc_tab][vc_tab title=”Step 9: Add the top and final piece” tab_id=”1389061470416-8-9″][vc_column_text]

It looks like this, and should be the only piece you have left:

*If you DO have any other pieces left, you done goofed*

Place this last and final piece on top of the stack and gently wiggle it around to get all of the little square buttons into all of the square button holes:

At this point, use a finger to press down on the middle of the case and then press each button to make sure that you can feel all of the buttons click. If any of the buttons do not click, remove the top and flip the button over. Replace the top of the case and check again. Once all of the buttons work properly, proceed to the next step.[/vc_column_text][/vc_tab][vc_tab title=”Step X: Screw the case together” tab_id=”1389061536107-9-5″][vc_column_text]

Take the 6(six) Number 4 screws and insert them into the screw holes and with the Phillips head screw driver, tighten them down:

Be sure not to screw it too hard, or the brass inserts might pop, or the acrylic crack.[/vc_column_text][/vc_tab][vc_tab title=”Step final Step: ENJOY!” tab_id=”1389061583333-10-6″][vc_column_text]

You have now successfully assembled your pcDuino enclosure. It should look like this:
